The metasurface optic patent field is at a maturity plateau, with annual filings near their 2023 peak and a moderate concentration among the top applicants. 3M Innovative Properties leads by family count, but a wave of new entrants — including Lumotive, Apple, and Metalenz — signals that competition is broadening across both commercial and academic routes.
3M leads a moderately concentrated field with a growing challenger tier
3M Innovative Properties holds the top position with 41 patent families, ahead of Lumotive at 25 and Avalon Holographics at 17. The top five filers account for 26% of the combined output of the hundred largest filers, indicating a moderate rather than dominant concentration.
A visible tier gap separates the top two applicants from the pack, but the distance narrows quickly from rank three onward, with Apple (16), MetaVC Patent Holding (14), and Metalenz (13) clustered closely. Several academic institutions — including Stanford, Syddansk University, Harvard, and Caltech — sit within the top 12, reflecting the field’s continued academic roots.
| # | Applicant | Patent families | Share |
|---|---|---|---|
| 1 | 3M Innovative Properties Co. | 41 | |
| 2 | Lumotive Inc. | 25 | |
| 3 | Avalon Holographics Inc. | 17 | |
| 4 | Apple Inc. | 16 | |
| 5 | MetaVC Patent Holding Co. | 14 | |
| 6 | Metalenz Inc. | 13 | |
| 7 | SINTEF TTO AS | 11 | |
| 8 | University of Southern Denmark | 10 | |
| 9 | NIL Tech APS | 10 | |
| 10 | The Board of Trustees of the Leland Stanford Junior University | 10 |
| # | Applicant | Patent families | Share |
|---|---|---|---|
| 11 | Meta Platforms Technologies LLC | 8 | |
| 12 | California Institute of Technology | 8 | |
| 13 | Ecole Centrale de Marseille | 7 | |
| 14 | Purdue Research Foundation | 7 | |
| 15 | Centre National de la Recherche Scientifique (CNRS) | 7 | |
| 16 | Imagia Inc. | 7 | |
| 17 | PRESIDENT & FELLOWS OF HARVARD COLLEGE | 7 | |
| 18 | Baylor University | 7 | |
| 19 | Neurophos LLC | 7 | |
| 20 | Aix-Marseille University | 7 |
3M’s lead is built on layered optical elements and surface structures, while challengers such as Lumotive emphasize beam-steering and LiDAR applications, and Metalenz focuses on nanotechnology-enabled flat lenses. This diversity of technical emphasis means no single applicant has locked up the full application space.
Filing counts for 2024 and 2025 are subject to publication lag and likely understate actual activity; the apparent softening in those years should not be read as a real decline. Longer-window growth, applicant concentration, and technology-route coverage are therefore more reliable signals than the latest-year bar alone.
Filings plateaued near the 2023 peak; optical elements dominate the technology mix
The filing trend reveals rapid growth from 2017 through a 2023 high, followed by a plateau; the technology composition shows heavy concentration in core optical classes with a long tail of adjacent application domains.
Annual filing trend
Activity accelerated sharply from 7 families in 2017 to a peak of 79 in 2023, with 2021 also registering 78. The 2024 and 2025 figures are suppressed by publication lag and should be treated as provisional. The multi-year window still shows positive growth at 17%, consistent with a field at maturity rather than decline.
↗ Hover for values · click a bar to ask EurekaTechnology composition
G02B (Optical elements and systems) dominates with 410 records, confirming that core flat-optic and lens design remains the primary technical focus. Secondary clusters in G02F (optical control and modulation), B82Y (nanotechnology), and H01L (semiconductor devices) point to the fabrication and active-tuning dimensions of the field. Sparser classes such as G01S (radar and positioning) and H01Q (antennas) reveal adjacent application areas that remain less densely covered.
↗ Hover for values · click a bar to ask EurekaHighly cited patent families surfaced by the query
Citation-heavy patent families returned by the query. Use this section as citation context, not as a curated list of the most topic-specific patents.
Electronic apparatus, and light field imaging syst…

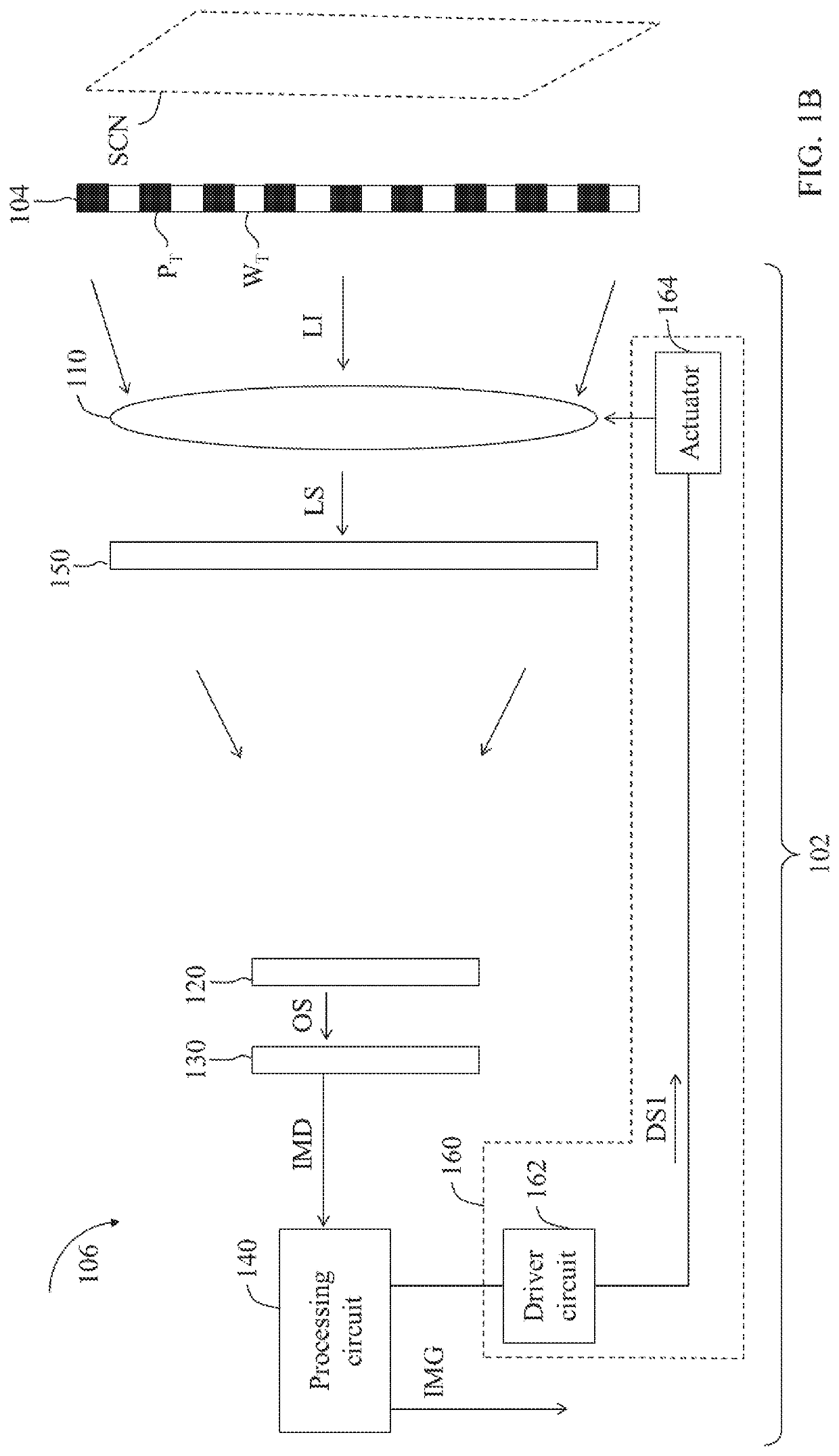

A light field imaging system placed under a display and used as a front-facing camera in a portable electronic apparatus is provided. The light field imaging system includes a lens unit, an optical metasurface and an image sensor. The lens unit is configured to collect input light from a scene and output a light signal. The optical metasurface, disposed in… (excerpt from the patent abstract)
| # | Patent | Citations |
|---|---|---|
| 1 | Metalens for light field imaging | 100 |
| 2 | Broadband achromatic metalens in the visible spect… | 76 |
| 3 | Spatially Multiplexed Dielectric Metasurface Optic… | 73 |
| 4 | Time-varying metasurface structure | 55 |
| 5 | Control circuitry for 2d optical metasurfaces | 43 |
| 6 | Conformal optical metasurfaces | 41 |
| 7 | Elecronic apparatus, and light field imaging syste… | 40 |
| 8 | Achromatized metasurface lens | 38 |
Ranked by total forward citations. Citation counts favour older and broadly cited patent families, and broad or adjacent patents may appear when they match the search scope. Treat this section as citation context, not as a curated list of the most topic-specific patents. Some patent titles may be shown in their original, non-English language where an accurate translation could not be guaranteed.
What the structure means for R&D strategy
The field combines a maturing core — well-covered flat-lens optics — with lightly patented adjacent branches that represent realistic entry points for focused R&D programs.
Plateau stage: core optics well-covered, adjacencies open
Annual filings have plateaued near the 2023 peak of 79 families, placing the field in a maturity stage. The multi-year growth rate remains positive at 17%, so the field is still expanding on a portfolio basis, but the pace of new core-optics filings has eased. Entrants should expect crowded prior art in fundamental metalens and flat-optic claims.
Maturity plateauModerate concentration with a broad challenger tier
The top five filers hold 26% of the combined output of the hundred largest filers — moderate by patent landscape standards. The gap between rank 1 (3M, 41 families) and rank 2 (Lumotive, 25) is meaningful, but ranks 3–6 are tightly clustered, suggesting the leader’s position is contestable. Academic institutions occupying seven of the top 20 slots indicate that the technology transfer pipeline remains active.
Moderate concentrationNIL Tech / Syddansk University is the most active co-filing pair
The strongest recorded co-filing relationship links NIL Tech APS with Syddansk University at 8 joint families, reflecting an industry-academia partnership on nano-imprint lithography for metasurfaces. 3M and Harvard co-filed 4 families, and Stanford co-filed 2 families with the Technology Research and Development Foundation. Syddansk University also holds a single co-filed family with SINTEF TTO. These pairings suggest that fabrication-scale-up and academic IP transfer are active collaboration axes.
Industry-academia linksUS-centric filing base with PCT and China as secondary routes
The United States leads all jurisdictions with 183 patent records, followed by WIPO PCT (71), China (62), and the European Patent Office (50). Taiwan (13) and Germany (9) are smaller but notable. The US-heavy profile reflects both the origin of leading applicants and the primary commercial market, while PCT filings indicate meaningful international protection strategies. China’s position at third signals growing domestic activity from Chinese academic and industrial filers.
US-led, globally filedGo beyond the landscape: Eureka’s TRIZ Solution agent breaks down an R&D problem and returns patented concept solutions, each with a technical approach and cited patent & literature evidence.
| Applicant | Collaborator | Co-filings |
|---|---|---|
| NIL Tech APS | University of Southern Denmark (Syddansk Universitet) | 8 |
| 3M Innovative Properties Co. | President and Fellows of Harvard College | 4 |
| The Board of Trustees of the Leland Stanford Junior University | Technology Research and Development Foundation Ltd. | 2 |
| University of Southern Denmark (Syddansk Universitet) | SINTEF TTO AS | 1 |
Co-filing pairs, ranked by the number of jointly-filed patent families.
3M anchors the field; Lumotive and Metalenz lead the new-entrant surge
The leader and primary challenger differ sharply in technical focus and trajectory: 3M’s position is built on a broad optical-elements portfolio accumulated over several years, while newer applicants are staking claims in beam-steering, nanotechnology-enabled lenses, and imaging systems.
3M Innovative Properties
3M holds 41 patent families, the largest count in the corpus, concentrated in G02B optical elements and layered laminates (B32B). Its momentum trend shows a 64% decline in recent filings versus the prior period, suggesting the company’s core metalens and optical-film portfolio is maturing rather than expanding. Its breadth of optical-element coverage makes it a blocking position for foundational flat-optic structures.
families: 41Lumotive
Lumotive ranks second with 25 patent families and is classified as a new entrant, meaning its filing activity is concentrated in the recent window from a near-zero prior base. Its technical focus spans optical control and modulation (G02F), beam-steering, and radar/positioning systems (G01S), positioning it squarely in solid-state LiDAR and spatial-sensing applications — a differentiated route from 3M’s flat-optic core.
families: 25| Applicant | Recent (3 yrs) | Trend |
|---|---|---|
| 3M Innovative Properties Co. | 10 | ▼ -64% |
| Lumotive Inc. | 15 | ▲ new entrant |
| Avalon Holographics Inc. | 8 | ▲ new entrant |
| Apple Inc. | 11 | ▲ new entrant |
| Metalenz Inc. | 11 | ▲ new entrant |
| NIL Tech APS | 9 | ▲ new entrant |
| NIL Technology LLC | 7 | ▲ new entrant |
| The Board of Trustees of the Leland Stanford Junior University | 7 | ▲ new entrant |
Under-served branches in radar/positioning and antenna design
Several IPC classes adjacent to the dominant G02B core show low patent density relative to their technical relevance to metasurface applications; two stand out as plausibly under-served given established physical principles and clear application paths.
G01S · Radar, sonar & positioning
With 29 patent records against 410 in the core optical class, G01S is sparse relative to the evident commercial interest in metasurface-enabled LiDAR and beam-steering sensors. Lumotive’s portfolio already points toward this intersection, confirming technical feasibility. An entrant with fabrication expertise in tunable metasurfaces could file in beam-steered solid-state LiDAR architectures with limited crowding from incumbent optical-elements filers.
Search this in Eureka →H01Q · Antennas
H01Q accounts for only 26 patent records, yet reconfigurable metasurface antennas for millimeter-wave and terahertz communications represent a well-established research direction. The sparsity likely reflects a gap between academic publication and patent protection. Organizations with RF or telecommunications backgrounds could enter this branch by extending metasurface phase-control techniques — already covered in G02F filings — into the antenna-pattern-shaping domain.
Search this in Eureka →How leading applicants diverge across technology routes
Strength of each leader across the main technology routes.
| Player | G02B 1 · Optical elements & systems | G02B 5 · Optical elements & systems | G02B 27 · Optical elements & systems | G02F 1 · Optical control & modulation | G02B 3 · Optical elements & systems |
|---|---|---|---|---|---|
| 3M Innovative Properties Co. | Strong · 30 | Strong · 23 | Moderate · 7 | Absent | Absent |
| Lumotive Inc. | Strong · 16 | Strong · 9 | Absent | Strong · 15 | Absent |
| Elwha LLC | Absent | Strong · 15 | Absent | Strong · 10 | Absent |
| NIL Tech APS | Strong · 8 | Strong · 8 | Strong · 8 | Absent | Absent |
| Metalenz Inc. | Strong · 10 | Absent | Strong · 13 | Absent | Absent |
| Apple Inc. | Strong · 8 | Absent | Strong · 5 | Absent | Strong · 5 |
| NIL Technology LLC | Strong · 7 | Strong · 9 | Absent | Absent | Absent |
Frequently asked questions
The analysis covers 409 patent families in scope globally.
3M Innovative Properties leads with 41 patent families, ahead of Lumotive (25) and Avalon Holographics (17).
The field reached a peak of 79 families filed in 2023 and annual volume has eased from that peak, though the multi-year growth window remains positive at 17%. The lifecycle stage is best described as a maturity plateau rather than active rapid growth.
The United States leads with 183 patent records, followed by WIPO PCT (71), China (62), and the European Patent Office (50).
G01S (radar, sonar and positioning) at 29 records and H01Q (antennas) at 26 records are notably sparse compared to the dominant G02B optical-elements class at 410 records, given their direct relevance to beam-steering and RF metasurface applications.
Yes. Syddansk University, Stanford (Board of Trustees), Caltech, Harvard, and several others appear in the top 20 applicants, and the NIL Tech / Syddansk University pair is the most active co-filing collaboration with 8 joint patent families.
